    單法蘭液位表送器在甘肅油田復雜工況怎么用
    信息來源: 液位變送器 | 2020-05-29 點擊量: 4397

    第二次工業革命則是讓人類進入了機械時代,其能源以石油為主,截止到今天為止,煤炭和石油依然是當今世界主要能源。在甘肅慶陽發現特大型油田,其儲量達50億噸,資源總價值超4萬億,甘肅大油田的發現,我國石油的發展打下了堅實的基礎,讓我國在進口石油之時有了踏實的底氣。  蘭州市、嘉峪關市、金昌市、白銀市、天水市、武威市、張掖市、平?jīng)鍪?、酒泉copy市、慶陽市、定西市、隴南市,等地區的很多油田開采上都有廣泛的使用方向,并且在慶陽市在2019年發現的大油田,在不久的將來會(huì )被廣泛的使用.

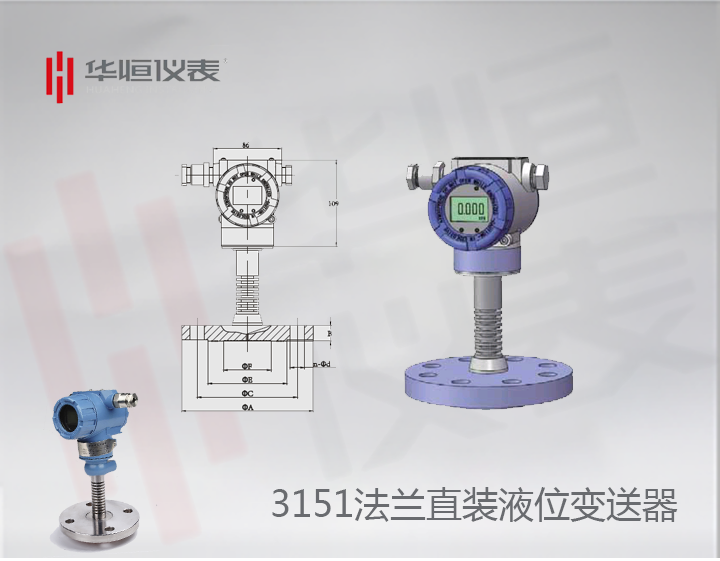

    3151TLT法蘭直裝式液位變送器_直裝式液位變送器_硅原理液位計
    立足西北,發展西北工業自動化使命感的西安華恒儀表制造廠家:目前擁有三大技術實力,一是全隔離的智能電路處理單元技術,二是金屬電容傳感器的制造技術,三是全系列節流裝置的多參量技術。
    在突出的液位/流量使用變送器使用有著超過40年的技術優勢和使用范疇.
    單法蘭液位變送器是一種直接安裝在管道或容器上的現場變送器。單法蘭液位變送器可對各種容器進行液位、密度的準確測量,分為平法蘭和插入式法蘭兩種,由于隔離膜片直接與液體介質相接觸。無須將正壓側用導壓管引出,因此適用于高溫、高粘度、易結晶、易沉淀和強腐蝕等介質的測量。
    單法蘭變送器分插入式和平法蘭兩種,兩種變送器的測量原理和安裝方式基本相同,但不同的工藝條件對變送器的測量數據影響是非常大的。以制鹽行業蒸汽冷凝水閃發桶為例,A為蒸汽冷凝水進口,B為閃發蒸汽出口,C為單法蘭變送器安裝位置.D為蒸汽冷凝水排水管道,E點為單法蘭變送器的負壓側取壓點。
    插人式單法蘭液位變送器還是平法蘭液位變送器歸根結底都屬于差壓變送器,其測量液位的原理都是通過公式P=pgh計算出介質在滿液位時的壓強, 然后將變送器的量程負遷移后通過差壓計算容器內液位的高度。所以,只有壓力測量準確了,液位才有可能是正確的。插人式單法蘭液位變送器的優點是在黏度高,顆粒大的介質中不易發生堵管現象, 但在應對流體沖擊較為嚴重的環境中還是顯得有些乏力
    單法蘭液位變送器也需要連續測量界面和密度,要在衛生清潔要求很高的場合使用。如食品、飲料和醫藥工業生產中,不僅要求變送器接觸介質部位符合衛生標準,并且應便于沖洗,以防止不同批量介質的交叉污染??上龑汗苄孤┪廴局?chē)h(huán)境,可免去采用隔離液時,因測量信號的不穩定,需要經常補充隔離液的繁瑣工作。
    從中東各國以及美國的反應來看,隨著世界石油資源的消耗,在未來石油緊缺之時,或許將爆發更大的資源爭奪戰,在這種背景之下,國內石油的儲量是越多越好,總之一句話,石油在手,天下我有。單法蘭液位變送器也需要連續測量界面和密度,要在衛生清潔要求很高的場合使用.也能夠使用.
    華恒變送器廠家研發出傳感器和智能電路板兩項核心技術,不僅所有產品的核心部件技術全部掌握,工業自動變送器廠家的精確度也在不斷提高,由0.2級提高到0.1級。還可通過對所掌握核心技術進行延伸,變形出測流量、測溫度的其他產品。

    The second industrial revolution is to let human beings enter the mechanical age. Its energy is mainly oil. Up to now, coal and oil are still the main energy sources in the world. The discovery of large oil fields in Qingyang, Gansu Province, has a reserves of 5 billion tons and a total resource value of more than 4 trillion. The discovery of large oil fields in Gansu Province has laid a solid foundation for the development of China's oil industry, which provides a solid foundation for China to import oil. Lanzhou City, Jiayuguan City, Jinchang City, Baiyin City, Tianshui City, Wuwei City, Zhangye City, Pingliang City, Jiuquan copy City, Qingyang City, Dingxi City, Longnan City and many other areas have a wide range of oil field exploitation directions, and the large oil field found in Qingyang City in 2019 will be widely used in the near future
    Based on the northwest, Xi'an Huaheng instrument manufacturer, which develops the sense of mission of northwest industrial automation, now has three major scientific and technological strengths, one is the technology of fully isolated intelligent circuit processing unit, the other is the manufacturing technology of metal capacitance sensor, and the third is the multi parameter technology of full series throttling devices.
    It has more than 40 years of technology advantages and application scope in outstanding liquid level / flow transmitter
    Single flange liquid level transmitter is a kind of field transmitter installed directly on the channel or vessel. The single flange liquid level transmitter can accurately measure the liquid level and density of various vessels, which can be divided into two types: flat flange and plug-in flange. Because the isolation diaphragm is in direct contact with the liquid medium. It is not necessary to lead the positive pressure side out with a pressure pipe. This method is applicable to the measurement of high temperature, high viscosity, easy crystallization, easy precipitation, strong corrosion and other media.


    There are two kinds of single flange transmitters: plug-in type and flat flange type. The measurement principle and installation mode of the two transmitters are basically the same, but different process conditions have a great influence on the measurement data of the transmitter. Taking the flash drum of steam condensate in salt industry as an example, a is the inlet of steam condensate, B is the outlet of flash steam, C is the installation position of single flange transmitter, D is the drainage pipe of steam condensate, and E is the pressure tapping point on the negative pressure side of single flange transmitter.
    Plug in single flange liquid level transmitter or flat flange liquid level transmitter are all differential pressure transmitters in the final analysis. The principle of measuring liquid level is to calculate the pressure of medium at full liquid level through the formula P = pGH, and then calculate the height of liquid level in the vessel through differential pressure after the range of transmitter is negatively shifted. Therefore, only when the pressure measurement is accurate can the liquid level be correct. The advantages of plug-in single flange liquid level transmitter are that it is not easy to block the pipe in the medium with high viscosity and large particles, but it still appears to be weak in the environment with severe fluid impact
    The single flange liquid level transmitter also needs to continuously measure the interface and density, which should be used in the occasions with high requirements of sanitation and cleaning. For example, in the production of food, beverage and medicine industry, it is not only required that the contact medium part of the transmitter meet the health standard, but also should be flushed to prevent cross contamination of different batches of media. It can eliminate the leakage of the impulse pipe and pollute the surrounding environment. It can avoid the tedious work of replenishing the isolation liquid frequently because of the instability of the measurement signal when using the isolation liquid.
    From the reactions of the countries in the Middle East and the United States, with the consumption of world oil resources, in the future when the oil is in short supply, there may be a greater battle for resources. In this context, the more domestic oil reserves, the better. In a word, oil is in hand, and I have it all over the world. The single flange liquid level transmitter also needs to measure the interface and density continuously. It should be used in the places with high requirements of sanitation and cleanness. It can also be used



    h華恒儀表央視轉載,西安液位變送器廠家產品宣傳,工匠精神宣傳

    華恒變送器廠家研發出感測器和智慧電路板兩項核心技術,不僅所有產品的核心部件科技全部掌握,工業自動變送器廠家的精確度也在不斷提高,由0.2級提高到0.1級。還可通過對所掌握核心技術進行延伸,變形出測流量、測溫度的其他產品。



    單法蘭液位表送器在甘肅油田復雜工況怎么用
    特此感謝,來自西安華恒儀表制造廠家的黨某工程師,羅某工程師,以及:周某總工程師,田某總設計指導師,



    ?
